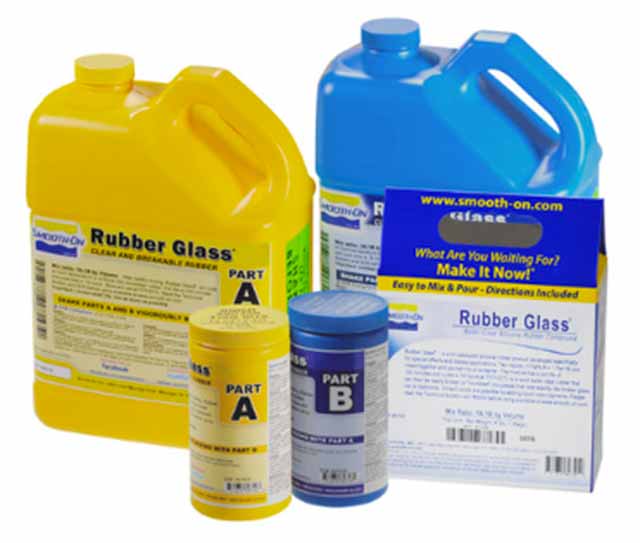

Rubber Glass

Unit Size	Net Weight
Pint Kit	2 lb
Gallon Kit	16 lb
Five Gallon Kit	80 lb



Rubber Glass is a platinum-catalyzed silicone rubber product developed specifically for special effects and display applications. Two liquids (1 Part A + 1 Part B) are mixed together and poured into a container. The mixture cures overnight to a solid water clear rubber that can then be easily broken or "crumbled" into pieces that look exactly like broken glass, ice or diamonds. Vibrant colors are possible by adding Silc-Pig liquid color pigments. Rubber Glass can be used to create a variety of special effects (i.e. simulated broken glass where human contact is required) and model effects (i.e. simulated ice or water). It can also be used for electronic encapsulation applications.

Technical Properties

Mix Ratio by Weight	1A:1B
Mix Ratio by Volume	1A:1B
Pot Life	120 minutes
Cure Time	16 hours
Color	Clear
Shore Hardness	33A
Mixed Viscosity	150 cps
Shrinkage	< .001 in./in.
Specific Volume	28.6 cu. in./lb.
Specific Gravity	0.97g/cc



FEATURES

• Can be easily crumbled into pieces that look exactly like broken glass, ice or diamonds.
• Vibrant colors are possible by adding Silc-Pig liquid color pigments.

  INSTRUCTIONS

  Measuring & MixingMaterials should be stored and used in a warm environment (73F/23C). This product has a limited shelf life and should be use as soon as possible. Mixing containers and stirring sticks should be made of plastic and must be clean and dry. Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk. Dispense One Parts A and One Part B by weight or volume into mixing container. Mix thoroughly for at least three minutes, making absolutely sure that you scrape the sides and bottom of your container several times. Do not whip or agitate material as this may cause air bubbles. If completely bubble free castings are required, vacuum degassing material prior to pouring will eliminate all bubbles.

  PouringPour mixture into a plastic container or mold (ice cube trays or plastic cups made of polyethylene work well). If pouring into or over other surfaces, be aware that cure inhibition is possible (see section below Ð "Cure Inhibition"). If casting into silicone molds, a release agent (Ease Release 200) is required

  CuringLet cure overnight at room temperature (73F/23C). Colder temperatures will slow the curing process. Material castings thicker than 2" (5 cm) may take longer to cure. Material is cloudy when first mixed but clears during cure.

  Cure InhibitionIf compatibility between the rubber and the surface that you are pouring rubber over is a concern, a small scale test is recommended. Materials found to cause cure inhibition include sulfur-based modeling clays and latex rubber. If pouring Rubber Glass II over a model surface that you think might cause inhibition, apply a "barrier coat" of clear acrylic lacquer sprayed directly over all surfaces that will come in contact with the Rubber Glass II is usually effective.

  AdhesionRubber Glass II may stick to some surfaces such as glass. A coating of Ease Release 200 will facilitate release from any surface.

  Material PerformanceOnce material has fully cured it can be removed from the container or mold. Cured Rubber Glass II is now ready to be displayed as is or broken/crumbled for your specific application. Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

Technical Bulletin

PRODUCT ADVISORY:
The products listed below are currently SPECIAL ORDER items and require pre order.
Lead times may vary - For more information please contact our staff.

800761 - Rubber Glass - Five Gallon Kit
