Description
| Unit Size | Net Weight |
| Quart Kit | 1.2 lb |
| Gallon Kit | 5.1 lb |
| Five Gallon Kit | 51 lb |

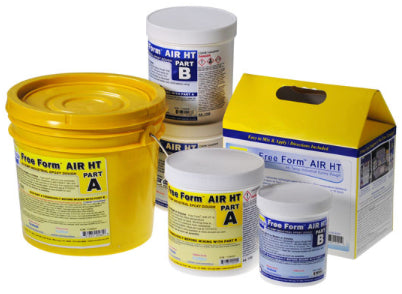

Free Form Air HT is a low density, lightweight epoxy putty that offers high temperature resistance to 300F/149C when cured at room temperature and 400F/204C when heat post cured. This is a low odor, low shrinkage formula that is easy to use. Free Form Air HT is mixed by hand with a 2A:1B by volume or weight mix ratio. It offers a long working time and cures overnight at room temperature to a hard, rigid epoxy that is very strong with modeling board-like properties. It can be sanded, shaped, drilled, tapped and CNC machined/routered. Size: Quart Kit 1.2Lb
Properties
Technical Properties
| Mix Ratio by Weight | 2A:1B |
| Mix Ratio by Volume | 2A:1B |
| Pot Life | Thickness Dependent |
| Cure Time | 16 hours |
| Color | Grey |
| Shore Hardness | 55D |
| Mixed Viscosity | Dough |
| Specific Volume | 54.31 cu. in./lb. |
| Specific Gravity | 0.51g/cc |
| Heat Deflection Temp | 300¼F400¼F (with post cure) |
APPLICATIONS
Epoxy Laminating; Laminate Free Form Air HT putty in between layers of EpoxAmite HT Laminating Epoxy and fiberglass cloth, carbon or other fiber for making lightweight composite parts. Eliminates the need to make multiple layers of laminating with liquid epoxy; saves time and labor.
Epoxy Tooling ApplicationsUse as a filleting material. Also good for jig and fixture construction.
Lightweight AdhesiveFree Form Air HT will bond to itself and a variety of surfaces including wood, stone and EpoxAcoat HT surface coat epoxy.
Pot Life / Working TimeThis material is mass sensitive. The more material you mix at one time, the less time you have to work with it. Working tip; If mixing a large quantity, flatten putty with a rolling pin to reduce mass concentration and extend pot life.
- Thickness ; 1.5 inch (3.81 cm) - pot life is 90 minutes, handling time is 3 hours, full cure in 16 hours.
- Thickness ; 3/8 inch (0.95 cm) - pot life is 2.5 hours, handling time is 5.5 hours, full cure in 16 hours.
- Thickness ; 1/8 inch (0.32 cm) - pot life is 3 hours, handling time is 6.5 hours, full cure in 16 hours.
Documentation
Special Order Items
PRODUCT ADVISORY:
The products listed below are currently SPECIAL ORDER items and require pre order.
Lead times may vary - For more information please contact our staff.
801623 - Free Form Air HT Epoxy Putty - Five Gallon Kit
The products listed below are currently SPECIAL ORDER items and require pre order.
Lead times may vary - For more information please contact our staff.
801623 - Free Form Air HT Epoxy Putty - Five Gallon Kit
