Description
Foredom TXH440 Industrial Kit is suitable for sanding and grinding applications on carving stones, wood, metals, plastics and plaster materials. The Foredom TXH440 Industrial Kit 1/3HP offers high torque at the low end and throughout the entire speed range of 500 to 15,000 RPM. The TXH440 uses speed controls with special electronics that provide a new level of controlled performance.
Properties

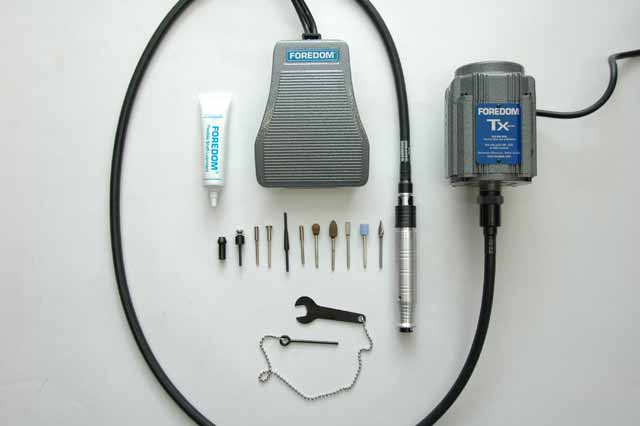

The TXH440 Industrial Kit 1/3HP contains:
Series TXH Motor:
This heavy duty model has exactly the same motor specifications as the M.TX. Series TX motors are Foredom's most powerful flex shaft machines with 1/3HP. They have permanent magnet DC motors that feature the latest in flex shaft technology. These ball bearing models utilize advanced rare earth magnets (in place of the wound fields in our universal type Series SR motors) that deliver more torque at the low end and throughout the entire speed range of 500 to 15,000 RPM.
This model comes equipped with a motor bale for hanging, and a 63 inch long, square drive shaft and heavy duty protective sheath in place of the standard key-tip shaft and sheath. Heavy duty shafts and sheaths can ONLY work with Foredom's four square drive handpieces- the H.25H, H.30H, H.44HT and new H.28H. Heavy duty flex shafts are the ultimate power tools for deburring, buffing, grinding, polishing and metal finishing of any kind with larger rotary accessories. They are great for large scale woodcarving and sculpting applications with carbide or steel burs and larger mounted grinding stones.
Foredoms permanent magnet motors require the use of a C.TXR, C.SXR, or C.EMX speed control. Damage will result if the motor is connected to any other speed control.
C.SXR Speed Control:
The C.SXR looks the same as our standard metal foot operated control but it has special electronics that converts AC current from an electrical outlet to DC current, the type required by Series TX motors. This control also has a different style plug that is made to fit the motor's shielded-type plug. The C.SXR features solid state circuitry in a cast iron housing. The added weight eliminates any unexpected movement of the control along the floor. The bottom surface of the speed control is covered with non-skid material. CSA listed. 6 3Ú4inch long, 4inch wide, 2 3Ú8inch high, ship wgt 6 lbs./2.7 kg.
H.44HT Handpiece: This special square drive, collet style handpiece is for exclusive use with our Series TXH, SRH and LXH heavy duty flex shafts. It comes with 3/32in, 1/8in and 1/4in collets. The tapered design allows for close and safe work. This handpiece is specialized and is NOT a member of the Foredom system of "interchangeable" handpieces.
AKHK25:
This 10 pc accessory kit includes 2 aluminum oxide points, 2 CeramCut Blue stones, 1 carbide bur and 5 different mandrels fro grinding wheels and cartridge rolls. All with 1/8in shanks. Flexible shaft grease and spare motor brushes.
FOREDOM PRODUCT WARRANTIES: All Foredom warranty issues require your tool's serial number and proof of purchase for warranty repairs.
Products with 2 Year Limited Warranty:
- Series TX and TXH Motors and Controls; Power Tool Kits K.TXH440, K.TX300, K.TX301, K.5400
- 1/6HP Series SR, SRM, SRH and SR CE Motors and Controls; Kits K.2220, K.2221, K.2230, K.2231, K.2272, K.2273, K.5200, K.5230, K.5240, K.5241, K.5300, K.SRH440
- Series LX and LXH Motors and Controls; Power Tool Kits K.2240, K.2245, K.2250, K.2252
- PowerGraver PGX Motor, Control and Power Tool Kit K.2293
- Arch Trimmer
- Brushless Micromotor Kit K.1050
- Micromotor Kits K.1020, K.1070, K.1080 and K.1090
- Wax Carver
- BL Lathe and Kits
- Drill Presses
- Angle Grinder, Belt Sander and Collet Adapter Attachments
- All Set
- Handpieces for Flexible Shaft Machines
- Shafts, Sheaths, Duplex Springs
All other Foredom power tools and attachments are warranted to be free of defects in material and workmanship for a period of 90 days from date of purchase by the user. These warranties do not cover breakage or damage caused by accident, abuse, or misuse and repairs required because of ordinary use and wear. Repair or replacement will be done at the option Of Foredom Electric Co. if the product is post-paid to manufacturer's factory. The manufacturer will pay the return postage charges for all items repaired under warranty.
Repair Services:
Authorized repair service is available at the Foredom factory. Send items to Foredom marked Attention: Repair Department. Enclose the item(s), a packing list, your address, and the best way to contact you phone, fax or email address and information regarding the problem or repairs required. Estimates of repair cost will be made upon request. It is Foredom's policy not to proceed with a repair without your approval if the cost labor plus parts is more than fifty percent of the cost for a new replacement. You will be notified and advised of the cost to repair and to purchase a new replacement.
Send Repairs to:
The Foredom Electric Co.
Attention: Repair Department
16 Stony Hill Road
Bethel, CT
06801
USA
