Flex Foam-iT 6 Lb Pillow Soft

Unit Size	Net Weight
Pint Kit	1.95 lb
Gallon Kit	16 lb
Five Gallon Kit	78 lb



FlexFoam-it! 6 Pillow Soft was developed to have a similar cell structure to commercial pillow foam. It is self-skinning, soft, easy to compress and rebounds nicely. Mixture expands about 10 times its original volumedepending on mass and mold configuration.
Working time is 35 seconds at room temperature. Mix ratio is 1A:1B parts by volume. Tack free time is 2 hours.

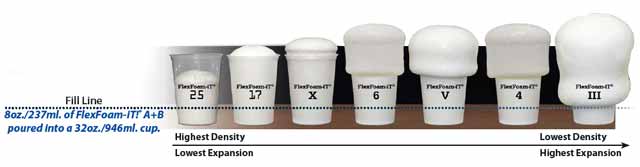

FLEXFOAM-iT EXPANSION RATES

Technical Properties

Mix Ratio by Weight	105A:100B
Mix Ratio by Volume	1A:1B
Pot Life	35 seconds
Tack Free Time	60 minutes
Cure Time	2 hours
Color	White
Mixed Viscosity	1,000 cps
Specific Volume	280 cu. in/lb.
Specific Gravity	0.9g/cc
Expansion (Approx.)	10 times
Foam Density	6 lb./cu. ft.



HELPFUL TIPS FOR CASTING FLEXFOAM-iT URETHANE EXPANDING FOAMS:
Thorough pre-mixing of both Part"A" and Part"B" in their original containers prior to measuring out. Specifically, failure to pre-mix Part"B" prior to dispensing will cause the ingredients in the system to remain unbalanced. Storing and working with materials in cold environments will cause the components of Parts "A" and "B" to separate (i.e. vinegar and oil). If these components are not brought back to proper room temperature and reconstituted this will cause failure in their cross-linking when mixed together.
Thorough mixing of Part"A" and Part"B" combined.Once combined together, Part"A" and Part"B" must be evenly and thoroughly blended scraping both sides and bottom of the mixing container. A double-mix pour technique, time allowing depending on product blended pot-life, will assist in the most successful mixing technique. Often with the foams, users will work quickly as materials generally have a short pot-life before expansion occurs and neglect a thorough mixing procedure.
Use of silicone-based release agents in molds where foams are cast, will cause collapse of the foam cell structure.
Mold configuration; if the mold is 'closed' and not capable of allowing gas to escape during the expansion & cure process of the foam, the de-molding procedure will result in the gases escaping from the cured foam causing collapse of the casting. Using a mold where the gases are allowed to escape during cure is important.
If the casting comes out of the mold collapsed; often it can be compressed which will cause it to re-inflate.
Cold molds can also contribute to foam collapse; sometimes materials will be kept at proper temperature, however, if the material is poured into a cold mold, that may cause cure-issues and collapse of the foam casting.

How To Improve The Surface Finish Of Foam Castings Using Back Pressure

Technical Bulletin

PRODUCT ADVISORY:
The products listed below are currently SPECIAL ORDER items and require pre order.
Lead times may vary - For more information please contact our staff.

799799 - Flex Foam-iT 6 Lb Pillow Soft - Five Gallon Kit
