Description
EZ~Spray¨ Silicone 20 is a sprayable silicone that cures quickly to a soft rubber with high elongation and tear strength. Liquid silicone is sprayed through the EZ~Spray¨ Junior Cartridge System which is an economical alternative to expensive spray equipment. After a suitable spray thickness is attained, EZ~Spray¨ Silicone 20 cures in about 10 minutes with negligible shrinkage to a strong, durable mold rubber good for production casting of polyester, epoxy or urethane resins, gypsum, concrete and other materials.

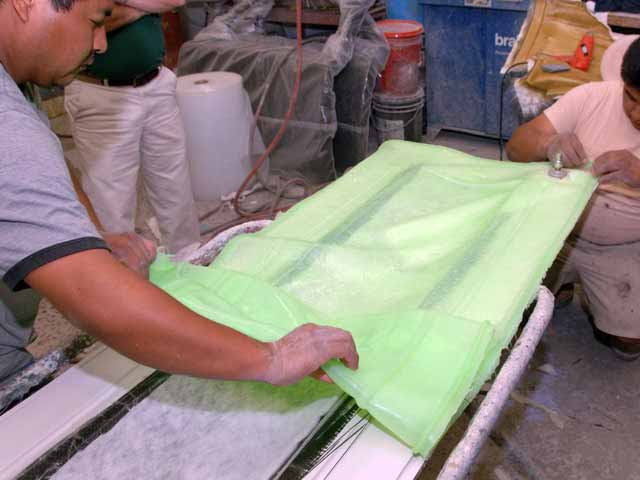

EZ~Spray¨ Silicone 20 is effective at making fast, cost effective vacuum bags for producing composite parts. Newly sprayed or injected bags can be removed from the mold in 10 minutes and used immediately in production with polyester or epoxy resin systems. The advantage that EZ~Spray¨ Silicone 20 offers vs. conventional vacuum bagging systems is the speed at which production-ready silicone bags can be made resulting in significant time and labor savings.
Contains 5 sets of 1500ml cartridges and 5 static mixing tubes.
EZ~Spray¨ Silicone 20 is effective at making fast, cost effective vacuum bags for producing composite parts. Newly sprayed or injected bags can be removed from the mold in 10 minutes and used immediately in production with polyester or epoxy resin systems. The advantage that EZ~Spray¨ Silicone 20 offers vs. conventional vacuum bagging systems is the speed at which production-ready silicone bags can be made resulting in significant time and labor savings.
Contains 5 sets of 1500ml cartridges and 5 static mixing tubes.
Properties
Technical Properties
| Mix Ratio by Volume | 1A:1B |
| Pot Life | 3 minutes |
| Cure Time | 20 minutes |
| Color | Translucent Green |
| Shore Hardness | 20A |
| Mixed Viscosity | 11,000 cps |
| Shrinkage | < .001 in./in. |
| Specific Volume | 25.6 cu. in./lb. |
| Specific Gravity | 1.08g/cc |
| Useful Temperature (max)< | 500¼F |
| Useful Temperature (min)< | -65¼F |
| Tensile Strength | 495 psi |
| 100% Modulus | 47 psi |
| Elongation @ Break | 470% |
| Die B Tear Strength | 100 pli |
Yield - Each cartridge contains 3.75 lbs. (1.7 kgs) of material. Assuming a thickness of 3/8 inches (0.95 cm), one cartridge of EZ~Spray¨ Silicone 20 will cover approximately 1.66 sq. ft. (0.15 square meters).
Media
Documentation
Special Order Items
PRODUCT ADVISORY:
The products listed below are currently SPECIAL ORDER items and require pre order.
Lead times may vary - For more information please contact our staff.
799399 - EZ Spray Silicone 20 - 5x1500 ml
799792 - EZ Spray Silicone 20 - Five Gallon Kit
The products listed below are currently SPECIAL ORDER items and require pre order.
Lead times may vary - For more information please contact our staff.
799399 - EZ Spray Silicone 20 - 5x1500 ml
799792 - EZ Spray Silicone 20 - Five Gallon Kit
