Smooth Cast 385 Tool Resin

SKU: 796880

Size: Gallon Kit
Price:
$130.09

Description

Unit Size Net Weight
Gallon Kit 12 lb
Five Gallon Kit 60 lb





Smooth-Cast 385 is a Slow-setting mineral filled urethane casting resins that are very hard and durable. When Parts A and B are mixed in proper proportion (1A:5B by weight), SC 385 cures at room temperature with virtually no shrinkage.
Properties
Technical Properties
Mix Ratio by Weight 1A:5B
Mix Ratio by Volume N/A
Pot Life 20 minutes
Cure Time 2 hours
Color Beige
Shore Hardness 85D
Mixed Viscosity 3,000 cps
Shrinkage 0.0006 in./in.
Specific Volume 17.3 cu. in./lb.
Specific Gravity 1.60g/cc
Tensile Strength 3,100 psi
Elongation @ Break 1%
Compressive Modulus 400,000 psi
Tensile Modulus 400,000 psi
Flexural Strength 5,900 psi
Flexural Modulus 433,000 psi
Compressive Strength 8,500 psi
Heat Deflection Temp 135¼F

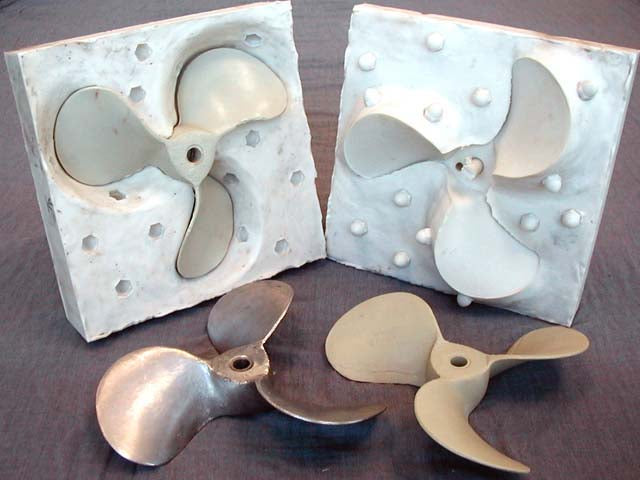

These rigid urethane casting resins differ only in working and demold times. Both have high compressive and flexural strength. Fully cured castings are tough, machinable and paintable. Color effects are possible by adding pigment dispersions. They resist moisture and mild solvents. SC 385 is ideal for making industrial production parts, foundry patterns, vacuum forming molds, and some ceramic applications.
How do I remove release agent from my cured urethane casting if I want to prime or paint the casting?
Removing a silicone-based release agent from your cured urethane casting is not easy. The most effective way is to sand blast or bead blast the surface of your casting. However, sand blasting removes a micro thin layer of the castingÕs surface. If not done properly, you can damage or remove fine detail. Soap Wipe or brush the casting with a soap that has high alkali content. Cascade brand dishwashing gel is highly alkaline and also contains baking soda, which is an advantage. Solvents Wipe or brush the casting with Acetone, Toluene, Isopropyl Alcohol or Mineral Spirits.
Important: follow all safety precautions when using flammable liquids. You can then prime and paint your casting.
Documentation
Special Order Items
PRODUCT ADVISORY:
The products listed below are currently SPECIAL ORDER items and require pre order.
Lead times may vary - For more information please contact our staff.


796910 - Smooth Cast 385 Tool Resin - Five Gallon Kit
