Description
| Unit Size | Net Weight |
| Gallon | 11.2 lb |
| 5 Gallon | 56 lb |

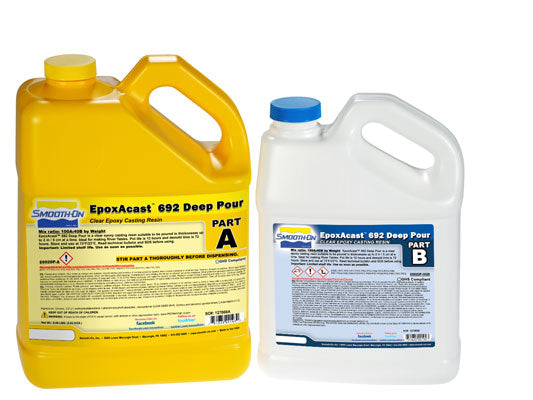

EpoxAcast 692 Deep Pour is a UV resistant clear casting epoxy resin suitable for a variety of industrial and art related projects requiring a rigid, clear finished casting. EpoxAcast 692 features a very low viscosity for easy mixing and minimal bubble entrapment. Castings cure with negligible shrinkage and are very hard and strong. Resin can be colored with UVO or IGNITE colorants. Cast Magic and Glow Worm powders can also be added to create amazing casting effects.
There are 2 ways to process EpoxACast 692, using standard casting and fan-cooled casting techniques.
Standard Casting - Using a standard casting method, EpoxAcast 692 Deep Pour has a maximum casting thickness of 1 1/2in (3.81 cm). Material should be poured and cured at an ambient temperature of 70F/21C.
Fan-Cooled Casting - To use a fan-cooled casting method, inexpensive box fans are placed near the curing epoxy to circulate air across the surface of the casting. This assists in cooling the material, allowing for thicker castings. Using a fan-cooled pouring method, EpoxAcast 692 Deep Pour has a maximum casting thickness of 2in (5.08 cm). Material should be poured at an ambient temperature of 70F/21C.
See Creating Epoxy Resin Tables Technical Bulletin for details.
There are 2 ways to process EpoxACast 692, using standard casting and fan-cooled casting techniques.
Standard Casting - Using a standard casting method, EpoxAcast 692 Deep Pour has a maximum casting thickness of 1 1/2in (3.81 cm). Material should be poured and cured at an ambient temperature of 70F/21C.
Fan-Cooled Casting - To use a fan-cooled casting method, inexpensive box fans are placed near the curing epoxy to circulate air across the surface of the casting. This assists in cooling the material, allowing for thicker castings. Using a fan-cooled pouring method, EpoxAcast 692 Deep Pour has a maximum casting thickness of 2in (5.08 cm). Material should be poured at an ambient temperature of 70F/21C.
See Creating Epoxy Resin Tables Technical Bulletin for details.
Properties
Technical Properties
| Casting Thickness | 1 1/2" |
| Mix Ratio by Weight | 100A:40B |
| Pot Life | 12 Hours |
| Cure Time | Variable |
| Color | Clear |
| Mixed Viscosity | 370 cps |
| Shrinkage | 0.007 in/in |
| Specific Volume | 25.7 cu. in/lb |
| Specific Gravity | 1.08 |
| Compressive Modulus | 82,000 |
| Tensile Modulus | 378,000 |
| Flexural Strength | 6,780 |
| Flexural Modulus | 203,000 |
| Compressive Strength | 5,777 |
| Heat Deflection Temp | 38 C |
